Cooke Lenses for 16mm Sk4

Cooke SK4 Super16 T2.0 Lenses

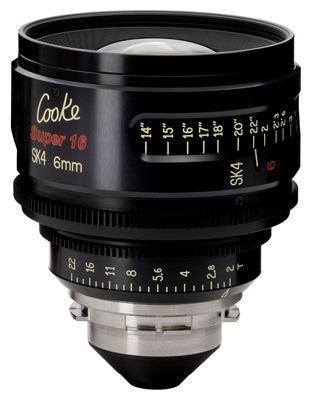

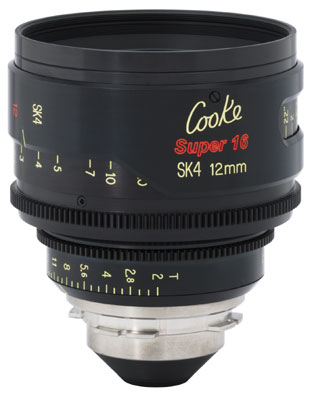

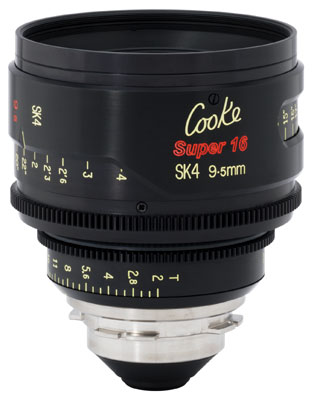

6mm, 9.5mm, 12mm

Shoot Super16

Complete your set of Cooke S4 Prime lenses for 35mm with the wide angle Cooke SK4 lenses designed for 16mm and Super16 formats.

These lenses have the same great features as the Cooke S4 Prime lenses for 35mm cinematography.

Unsurpassed Cooke optical quality and color matched to the S4 Primes for 35mm.

Cooke Super16 Masks are available to use when shooting Super16 with the Cooke S4/i 35mm Prime lenses. These are matte attachments for each of the twelve S4/i focal lengths from 16mm through 100mm.

Specifications
	6mm	9.5mm	12mm
T-Stop Range	T2-T22	T2-T22	T2-T22
Iris Scale	Two opposing linear T scales, Whole and third stops marked.
Angular Rotation of Iris Scale	96 degrees	96 degrees	96 degrees
Iris Drive Gear	114 teeth 0.8 metric module x 4.0mm wide x 85mm from image plane
Focus Scales	Two opposing focusing scales, metric or footage. Scales marked from infinity to MOD
Minimum Marked Footage/Metric Object Distance	8 inch / 200mm	8 inch / 200mm	8 inch / 200 mm
Footage/Metric Close Focus from Lens Front	1.5 inch / 35mm	1.5 inch / 35mm	1.5 inch / 35mm
Angular Rotation to MOD Endstop	270 degrees	270 degrees	270 degrees
Maximum Format Covered	14.5mm diameter (Super16 format)
Internal Front Filter Fitting	M105 x 0.75 pitch	M105 x 0.75 pitch	M105 x 0.75 pitch
External Front Diameter	4.33 inches / 110mm	4.33 inches / 110mm	4.33 inches / 110mm
Overall Length from Front of Lens to Lens Mount	6.5 inch / 165mm	6.5 inches / 165mm	6.5 inches / 165mm
Weight	3.5 lbs. / 1.6 kg	3.1 lbs. / 1.4 kg	3.3 lbs. / 1.5 kg
